Cost effective Thermobalance:TGA PT1000

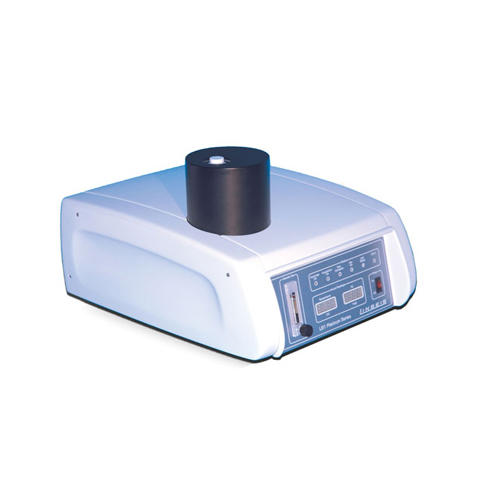

The Linseis TGA PT1000 for thermogravimetric applications is a toploading Thermobalance, which offers a highly userfriendly design. Even at a sample weight of up to 5 or 10g the tara is done electronically. The specially designed furnaces allow fast heating and cooling rates as well as a highly precise temperature control from RT up to 1000°C. The system can be optionally equipped with a coupling device for EGA (Evolved Gas Analysis). The instrument is highly suitable for thermal composition, thermal stability and oxidation studies. The (optional) calculated DTA signal provides important additional information regarding endothermal or exothermal reactions. Furthermore it can be used as a tool for temperature calibration.
|Model||STA PT1000||LFA 1000|
|Temperature range||RT up to 1000°C||RT up to 1000°C|
|Sample mass||up to 10g||up to 5g|
|Resolution||0.5 ug||0.1 ug|
|Cool down speed||< 15min (1000°C – 100°C)||< 15min (1000°C – 100°C)|
|Gas control box||optional||optional|
