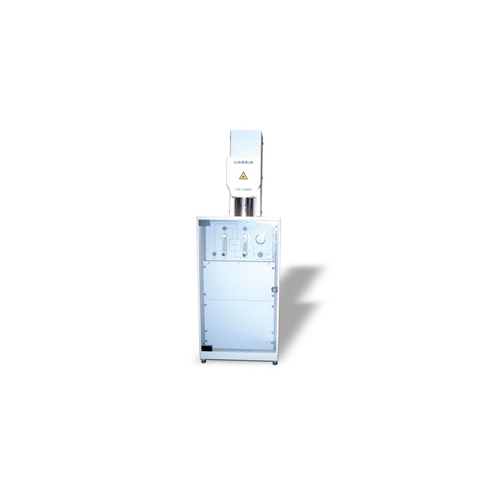

Highest Precision Laser Dilatometer L75 Laser


Unmatched resolution and absolute accuracy is now possible due to the development of the Linseis Laser Dilatometer of the Pico-series. As the name indicates already the resolution goes up to Picometers (0,3 nm = 300 Picometer). That means resolutions can be obtained which are up to a factor 33,33 higher as the resolution that were possible up to date. On top the principle of interference measurement give the possibility for much higher accuracy’s, especially as some special computer calibrations are used. Up to now absolute accuracy’s of 1% were normal, with best accuracy’s up to 100 nm. The new method allows accuracy’s up to 30 nm.

Linseis L75/LASER only needs slight machining of the sample. All you need to do is just prepare one sample, as with the conventional push rod type dilatometer. The system does not require any specific sample geometry. All types of material, reflecting or none reflecting can be evaluated with the system. The measurement principle is an “absolute measurement”, not like conventional double sample pushrod Dilatometers, providing much higher precision. No calibration has to be undertake, unlike with conventional Dilatometers.

The application measurement: INVAR sample demonstrates the unbeaten accuracy of the LASER measuring technique.

Inquiry Now


    Model L75
    Temperature range -150 up to 500°C
    RT ... 1000°C
    Resolution 0.3 nm
    Heating/cooling rates 0.01 K/min ... 50 K/min
    Sample holders fused silica
    Sample length 20mm
    Sample diameter 7mm
    Interface USB
