Material of construction: lm-6 (aluminium casting), toughened well glass
Main body is in aluminium alloy casting, mounting arrangement for lights is made inside the enclosure with metalic holders and clamps. 2- cable entries are provided at the of the enclosure body. Mounting of the entire assembly at site is provided on the top cover.

Well glass is secured firmly and bonded to the bottom cover with epoxy resin. The cover is threaded and to be fixed to the main body. Locing screws are provided for both, top and bottom covers.

Flameproof well glass lighting fitting is useful for industrial potentially hazardous areas. Suitable for using up to 250 watts , 240 volts ac/dc lighting fixtures.

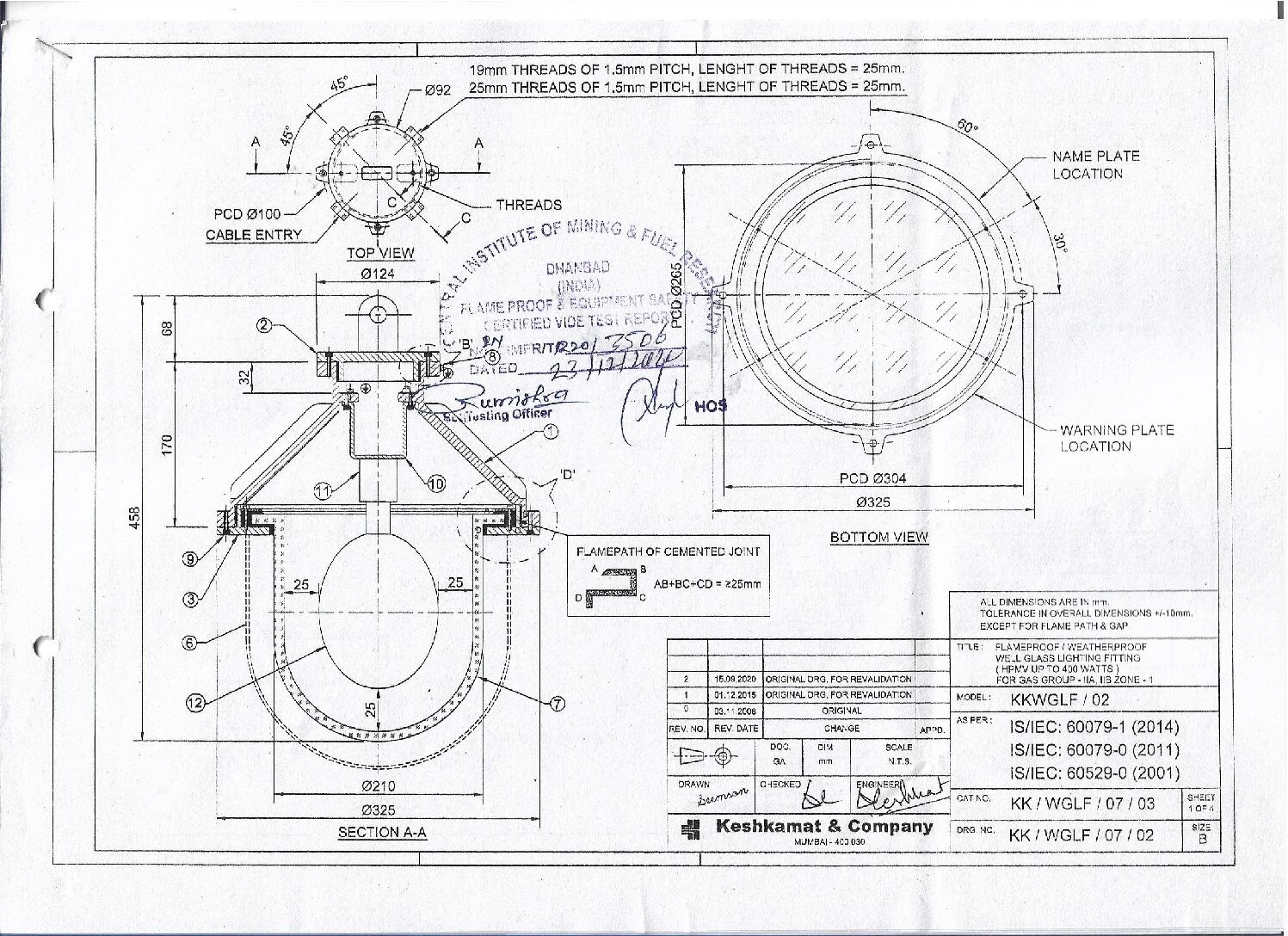

dimensions: height – 422 mm x max diameter -202 mm

Cable glands: 19mm or 25 mm, maximum 2- nos.

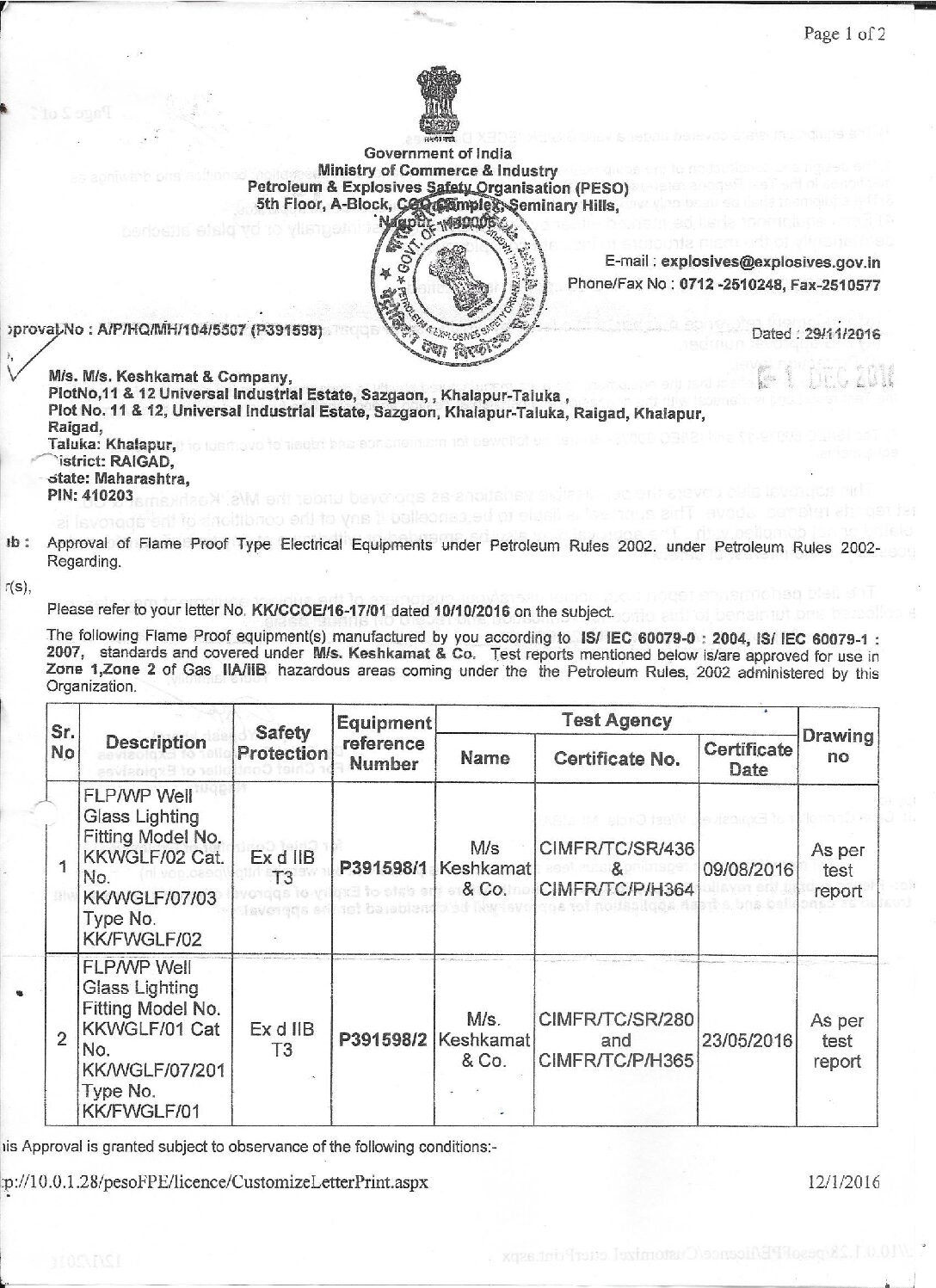

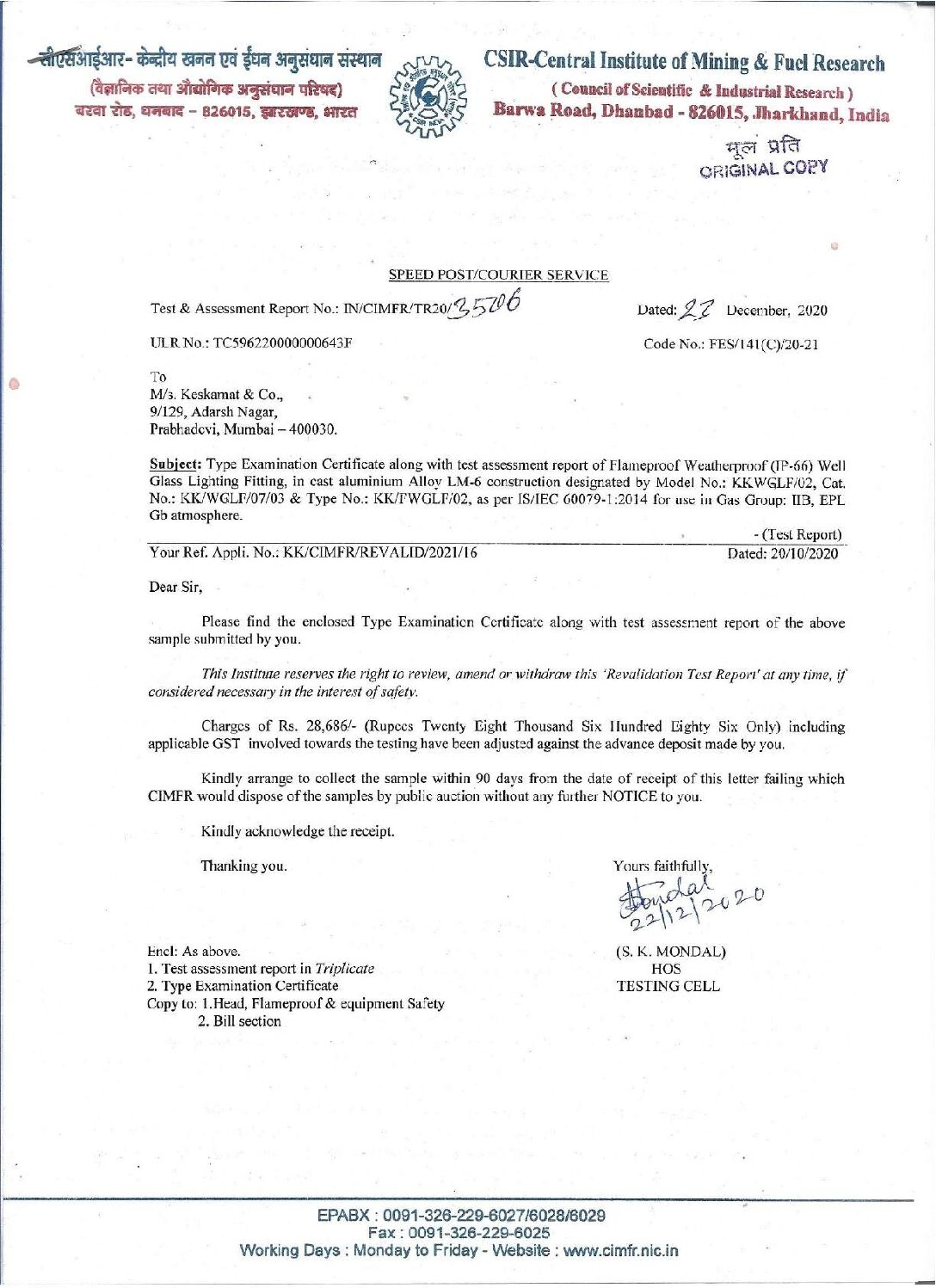

Certification by: cimfr, bis(isi-mark), peso
