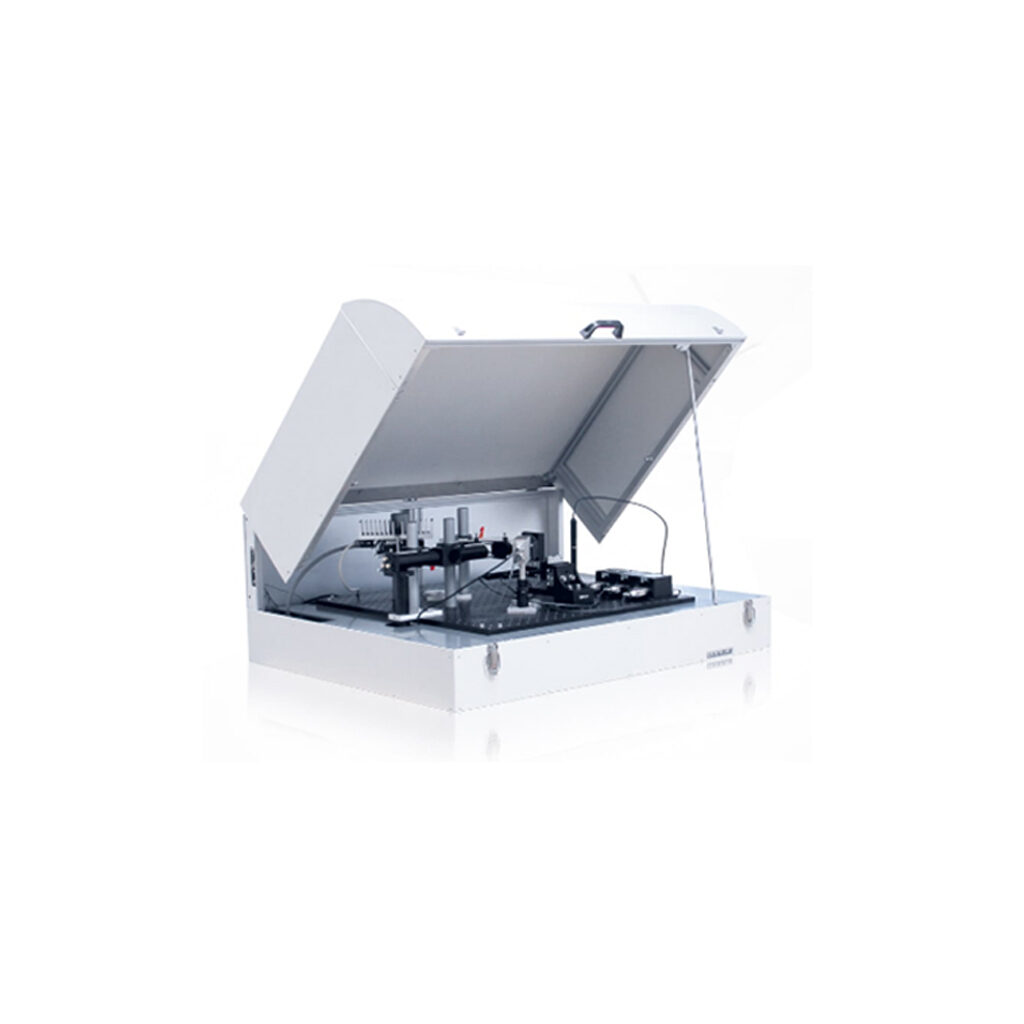

Thin Film Laser Flash Analyser (TF-LFA)
Product Description
Specifications
| Model | TF-LFA |
|---|---|
| Temperature range | RT RT up to 500°C -100°C up to 500°C |
| Pump-Laser | Nd:YAG Lase |
| Maximum Impulse current: | 90mJ/Impuls (software controlled) |
| Pulsewidth | 8 ns |
| Probe-Laser | CW DPSS-Laser (473 nm), 2mW |
| Photoreceiver | Si-PIN-Photodiode, active diameter: 0.8 mm, bandwidth DC … 400MHz, risetime: 1ns |
| Measuring range | 0.01 mm2/s bis 1000 mm2/s |
| Sample diameter | round samples ∅ 10…20 mm |
| Sample thickness | 80 nm up to 20 µm |
| Atmospheres | inert, oxidizing, reducing |
| Vacuum | up to 10E-4mbar |
| Electronics | Integrated |
| Interface | USB |
